Hybond 522 A

Hybond 522 A

SKU: Hybond-522A-Thermosonic-Ball-Bonder Equipment Type: Brand:

Manufacturer: Hybond

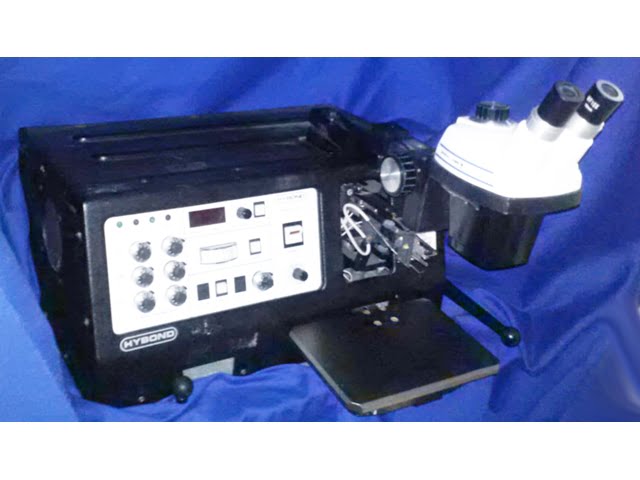

The Model 522A sets the industry standard for ease of operation and maintenance.

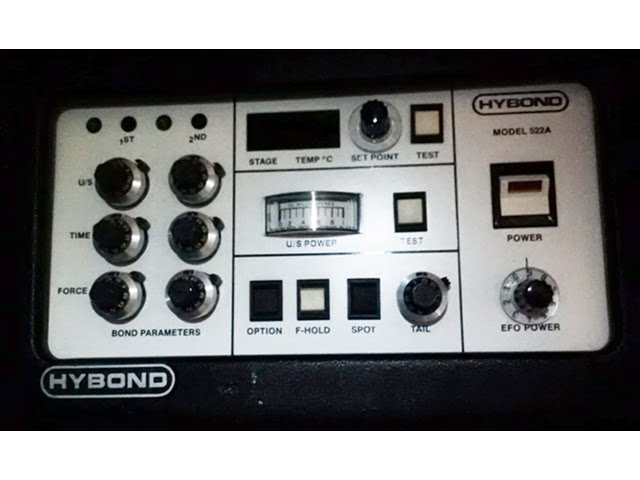

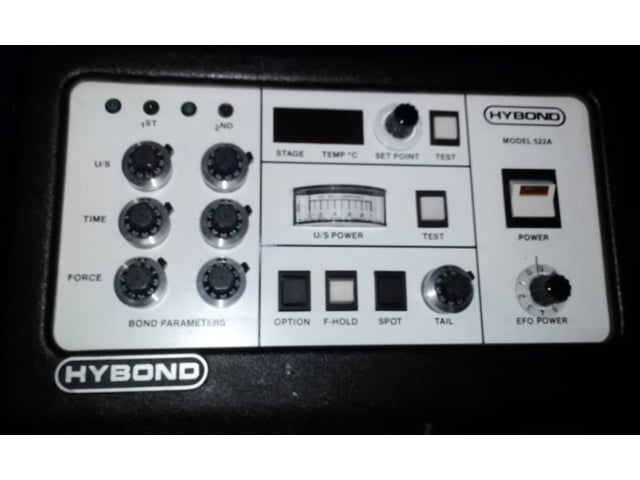

Front panel operator controls include force, ultrasonic time, ultrasonic energy,
tail length, EFO power, and stage heat. The 4:1 X-Y manipulator stage movement
and Z axis bond motion are conveniently located to reduce operator fatigue.

Precision machined mechanical components with sealed ball bearings at major
points are durable and trouble free.

Modular electronics facilitate quick and cost effective maintenance.

HYBOND Soft TouchTM energy system.
Front panel ultrasonic test button.
Deep vertical access of 0.59 inch.
1-2-2 stitch capability standard.
Horizontal reach of 3.5 inches.
2 inch spool mount.
Loop height control adjustment.
Electronic ball size control.
Independent Z lever for control
of bonding tool.
Motorized vertical wire feed
Wire-in-tool bonds within 0.04 inch from backwall.
Independent control of first and second bond
Tail length is adjustable in .003 inch increments by a front panel control.
Audio and visual bond sequence fault indicators.
6 x 8.5 inch work plate supports various heated
work stages.
LED readout for setting and monitoring work stage temperature.
Infinite angle mounting for microscope
