Measurement Display Range … 200 A to 655,000 A
(20nm to 65,000nm)
Vertical Resolution … 5A (.5nm)
Scan Length … 50 microns to 30mm
Scan time … .4 to 65 seconds (depending on
scan length and speed range)
Leveling … . Automatic or Semi-Automatic
Stylus (standard) . Diamond, 12.5 micron radius
Stylus Tracking Force …10 to 50mg (field adjustable)
Maximum Sample Thickness 20mm (.75 inch)
Stage Diameter … 127mm(5 inches)
Stage Translation (from center)
X-Axis … .Â±10mm (.4 inch)
Y -Axis … .Â±10mm,-70mm (.4 and-2.8 inches)
Magnification -Microscope: 70X; Video Camera: 90X
Thermal Printer … 15 seconds/printout
Printout Size … 11cm x 17cm (4.3 x 6.75 inches)
Weight (Includes tools and accessories)
Control Console and Printer … 22.2kg (49 Ibs)
Scanning Head … 20.41kg (45 lbs)
Video Camera … 1.1kg (2.5 lbs)

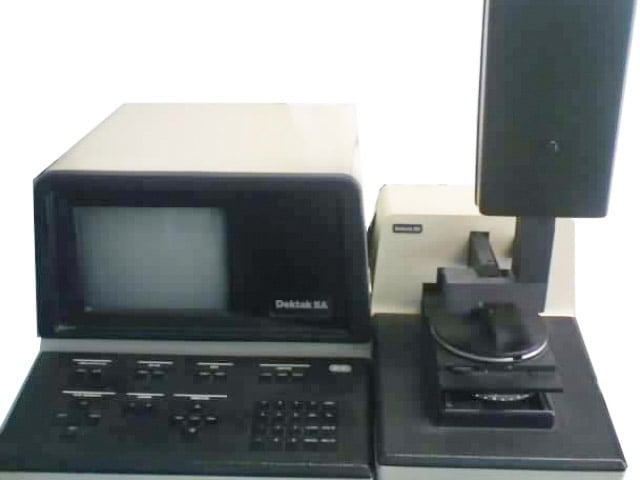

Please note: JMI has thousands of machines in stock and the photo of the item taken at our facility is for reference. There may be multiple models of this item in stock. JMI will email a video of any machine purchased under payment terms agreed, demonstrating operation (prior to shipment) at your request.
