HYBOND 572
HYBOND 572

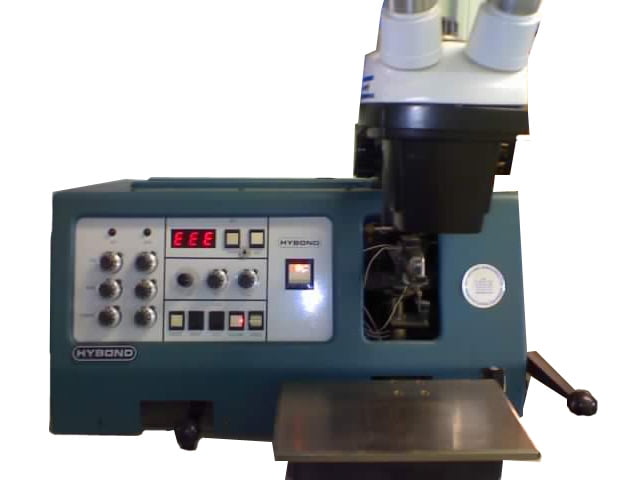

HYBOND 572 THERMOSONIC WIRE AND RIBBON WEDGE BONDER
The Model 572 sets the industry standard for ease of operation and maintenance.
Front panel operator controls include force, ultrasonic time, ultrasonic energy, tail length,
and stage heat. The 4:1 X-Y manipulator stage movement and Z axis bond motion are
conveniently located to reduce operator fatigue. Precision machined mechanical
components with sealed ball bearings at major points are durable and trouble
free. Modular electronics facilitate quick and cost effective maintenance.
FEATURES
HYBOND Soft Touch energy system.
Front panel ultrasonic test button.
Deep vertical access of 0.59 inch.
Horizontal reach of 3.5 inches.
0.5 and 2 inch spool mounts standard.
Loop height control adjustment.
Motorized vertical wire feed.
1-2-2 stitch capability standard.
Wire-in-tool bonds within 0.04 inch
from backwall.
Swing away clamp assembly standard.
Infinite angle mounting for microscope
Audio and visual bond sequence fault indicators.
Independent control of first and second bond
parameters.
Tail length is adjustable in .003 inch increments
by a front panel control.
6 x 8.5 inch work plate supports various heated
work stages.
LED readout for setting and monitoring work stage
temperature.
Independent Z lever for control of bonding tool.
Wire and ribbon bonding with only a bonding tool
change.
Interested in this Equipment? Contact Us Today!
Please note: JMI has thousands of machines in stock and the photo of the item taken at our facility is for reference. There may be multiple models of this item in stock. JMI will email a video of any machine purchased under payment terms agreed, demonstrating operation (prior to shipment) at your request.
We also list some of our equipment ready to go now on Ebay!
JMI has been selling refurbished semiconductor manufacturing equipment for over 40 years. Experienced technicians and a vast inventory of machines and parts enables JMI to offer support on the majority of tools we sell….for many years after the Original equipment manufacturer (OEM) does not.
Many tools are also listed on ebay if you prefer to purchase online immediately.
To avoid Ebay commissions, you can also place most machines on hold immediately by calling or texting J on his cell phone (978) 771-0481.
Reasons to Choose J.M. Industries, Inc.
- JM Industries is selling this item in good condition and fully operational. The refurbished HYBOND 572 comes with a 30 day warranty. (extended warranties are available for an additional cost).
- If you purchase the HYBOND 572, JMI will fully test the item. In many cases JMI will also run your product with the equipment to minimize your set up time. (just ask).
- Buy the HYBOND 572 direct and avoid broker commissions.
- Email us for more photos of the guaranteed HYBOND 572. Feel free to call us with any questions regarding the machine in stock. Also contact JMI to learn about options that may be available for this item.
- If there are any special details that are critical on the HYBOND 572 for your process, please let us know so we can be sure it meets your needs.
- J.M. Industries offers support for many other machines, like the HYBOND 572, even after the OEM (Original Equipment Manufacturer) discontinues offering parts or service.
- Please inspect all shock watch indications when you receive the HYBOND 572 from J.M. Industries before signing the bill of lading to ensure the equipment has been delivered in the same good condition it was shipped.
- If would would like to see an emailed video of the HYBOND 572 you have purchased in operation prior to shipment, please let us know. Please note: We may need a deposit prior to sending a video of the equipment to cover techncian costs.
